Wireless Hard Disk

Product and accessories

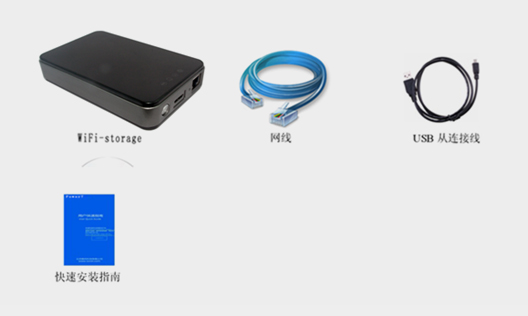

WiFi Disk is consist of wimate device、Ethernet、USB cable、 QIG .

Product Parameters and Configurations
1.Physical Parameters
shape dimension：130*82*25
product color：BLACK
2.Basic Parameters
CPU：MIPS24KEc 360MHZ
WIFI：support 802.11 b/g/n, frequency 2.4 GHZ
Network Interface： 100Mbps Ethernet RJ45
USB Interface：Micro USB 3.0，Connect to computer to transmit data and charge the device when connect to the USB adapter.
Battery：3000mA
Power：
A)Maximal power dissipation(reading and writing data)：3.7W
B)Standby power dissipation(non-reading and writing data)：2.5W
C)Standby power dissipation(HDD sleep)：2.1W
3.Operating temperature
The operating temperature of the device should be 5-35 degree

Product Functions

Wimate is kind of product which via WiFi to access to the data, mainly as follows:

◆ Storage medium compatible with the SATA HDD which is within 2.5 inch 9.5mm

◆ With wifi module and support 808.11a/b/g/n

◆Including three kinds of simple Router operating mode:  AP+Client, AP+WAN Bridge , AP+WAN

◆ Support USB Mobile HDD, the internal documents adopt exFAT

◆Support LAN data-shares and cross-platforms which including Windows/Mac/Linux/iPad/iPhone/Android

◆ Support multiple NSA, including samba/webdav

◆Support multiple platform client tools, including Windows/Mac/Linux/iPad/iPhone/Android

◆with battery inside which can support more than 5 hours.
